לוח אם Gigabyte Z890M GAMING X DDR5 Micro ATX
-
Supports Intel® Core™ Ultra processors (Series 2)
-
Power Solution: 8+1+2 Direct Digital VRM Solution
-
VRM Thermal Armor Advanced & M.2 Thermal Guard
-
RAM: 4x DIMM, DDR5 9200MHz(OC), 256GB max
-
RGB Headers: 5v, 12v
-
Storage: 1x M.2 PCIE 5.0, 2x M.2 PCIE 4.0, 4x SATA 6Gb/s
-
Supporting PCIe 5.0 and running at x16
-
Fan headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
-
5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
-
2x USB 2.0/1.1 ports on the back panel
-
4x USB 2.0/1.1 ports available through the internal USB headers
-
Graphic Ports: 2x DisplayPort, 1x HDMI
לוח אם Gigabyte B650M AORUS ELITE AX Micro ATX
-
Supports CPU: AMD Socket AM5
-
Power Solution: Twin 12+2+1 Digital VRM Design
-
Ram: 4x DIMM DDR5, 6666Mhz max , 128GB max
-
RGB Headers: 2x 5v, 3x 12v
-
Storage: 2x m.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
Wireless Data Network: AMD Wi-Fi 6E RZ616
-
BLUETOOTH 5.2
-
Rear USB Port: 1x USB Type-C, 2x USB 3.2 Gen 2 Type-A ports, 1x USB Type-C® port with USB 3.2 Gen 2x2 support, 3x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1
-
Graphic Ports: 1x HDMI, 1x DP
לוח אם Gigabyte B650M GAMING X AX Micro ATX
-
Supports CPU: AMD Socket AM5
-
Power Solution: Direct 6+2+1 Phases Digital VRM Solution
-
Ram: 4x DIMM DDR5, 6400Mhz max , 128GB max
-
RGB Headers: 1x 5v, 1x 12v
-
Storage: 2x m.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
Wireless Data Network: AMD Wi-Fi 6E RZ616
-
BLUETOOTH 5.2
-
Rear USB Port: 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2, 1x USB 3.2 Gen 2 Type-A port, 1x USB 3.2 Gen 1 port, 1x USB Type-C® port with USB 3.2 Gen 2 support, 4x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1
-
Graphic Ports: 1x HDMI, 1x DisplayPort
לוח אם Gigabyte B660M GAMING AC DDR4 Micro ATX
-
Supports CPU: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: Direct 6+2+1 Hybrid Digital VRM Design with DrMOS
-
Ram: 2x DIMM, DDR4, 3200Mhz max , 64GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
- WIFI: Intel® Wi-Fi AC 3168
-
2.0/1.1 Rear USB Port: 5x USB 3.2 Gen 1, 2x USB 3.2 Gen
-
Graphic Ports: 1x HDMI, 1x DP
לוח אם Gigabyte B660M GAMING DDR4 Micro ATX
-
Supports CPU: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: Direct 6+2+1 Hybrid Digital VRM Design with DrMOS
-
Ram: 2x DIMM, DDR4, 5333Mhz max , 64GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Fast 2.5 GbE GAMING LAN with Bandwidth Management
- WIFI: No
-
2.0/1.1 Rear USB Port: 1x USB 3.2 Gen 2, 1x USB-C, 1x USB 3.2 Gen 1 ports , 2x USB
-
Graphic Ports: 1x VGA, 1x HDMI, 1x DP
לוח אם Gigabyte B760M AORUS ELITE AX DDR5 Micro ATX
-
Supports CPU: Support for 12th & 13th Generation Intel® Core™ processors
-
Power Solution: Twin 12+1+1 Phases Digital VRM Solution
-
Ram: 4x DIMM, DDR4, 7600Mhz max , 128GB max
-
RGB Headers: 1x 5v, 1x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
Intel® Wi-Fi 6E AX211 + BLUETOOTH 5.3
-
Rear USB Port: 1x USB 3.2 Gen 2 Type-A port, 1x USB Type-C® port, with USB 3.2 Gen 2x2 support, 3x USB 3.2 Gen 1 ports
-
Graphic Ports: 1x HDMI, 1x DP

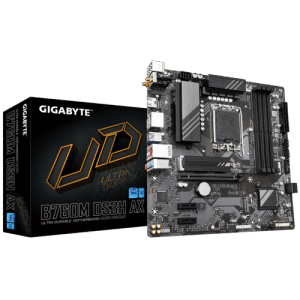

לוח אם Gigabyte B760M DS3H AX DDR4 Micro ATX
-
Supports CPU: Support for 13th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
-
Ram: 4x DIMM, DDR4, 5333Mhz max , 128GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
AMD Wi-Fi 6E RZ608 + BLUETOOTH 5.2
-
2.0/1.1 Rear USB Port: 1x USB Type-C® port on the back panel. 5x USB 3.2 Gen 1, 2x USB
-
Graphic Ports: 1x HDMI, 1x DP, 1x D-Sub
לוח אם Gigabyte B760M DS3H AX DDR5 Micro ATX
-
Supports CPU: Support for 13th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: Hybrid 6+2+1 Phases Digital VRM Solution
-
Ram: 4x DIMM, DDR5, 7600Mhz max , 192GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
Intel® Wi-Fi 6E + BLUETOOTH 5.3
-
2.0/1.1 Rear USB Port: 1x USB Type-C® port on the back panel. 5x USB 3.2 Gen 1, 2x USB
-
Graphic Ports: 1x HDMI, 1x DP, 1x D-Sub
לוח אם Gigabyte B760M DS3H DDR4 Micro ATX
-
Supports CPU: Support for 13th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
-
Ram: 4x DIMM, DDR4, 5333Mhz max , 128GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
2.0/1.1 Rear USB Port: 1x USB Type-C® port on the back panel. 5x USB 3.2 Gen 1, 2x USB
-
Graphic Ports: 1x HDMI, 1x DP, 1x D-Sub
לוח אם Gigabyte B760M DS3H DDR5 Micro ATX
-
Supports CPU: Support for 13th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: Hybrid 6+2+1 Phases Digital VRM Solution
-
Ram: 4x DIMM, DDR5, 7600Mhz max , 192GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
-
2.0/1.1 Rear USB Port: 1x USB Type-C® port on the back panel. 5x USB 3.2 Gen 1, 2x USB
-
Graphic Ports: 1x HDMI, 1x DP, 1x D-Sub

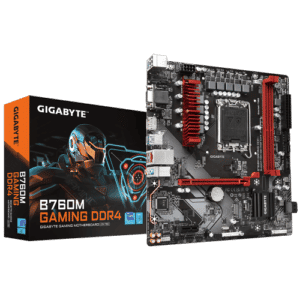

לוח אם Gigabyte B760M GAMING DDR4 Micro ATX
-
Supports CPU: Support for 13th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
-
Power Solution: Direct 6+2+1 Hybrid Digital VRM Design with DrMOS
-
Ram: 2x DIMM, DDR4, 5333Mhz max , 64GB max
-
RGB Headers: 1x 5v, 1x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 3
-
Internet: Realtek® 2.5GbE LAN chip
- WIFI: No
-
Rear USB Port: 2x USB 2.0/1.1, 1x USB-C, 5x USB 3.2 Gen 1 ports
-
Graphic Ports: 1x VGA, 1x HDMI, 1x DP
לוח אם Gigabyte B760M GAMING X AX DDR4 Micro ATX
-
Supports CPU: Support for 12th & 13th Generation Intel® Core™ processors
-
Power Solution: Direct 8+1+1 Hybrid Digital VRM Design with DrMOS
-
Ram: 4x DIMM, DDR4, 5333Mhz max , 128GB max
-
RGB Headers: 2x 5v, 2x 12v
-
Storage: 2x M.2, 4x SATA 6Gb/s
-
Fan Headers: 6
-
Internet: Realtek® 2.5GbE LAN chip
-
AMD Wi-Fi 6E RZ608 + BLUETOOTH 5.2
-
Rear USB Port: 3x USB 3.2 Gen 1 ports, 5x USB 2.0/1.1
-
Graphic Ports: 1x HDMI, 1x DP
